Enlightened by the apparent success of the Mercury Cyclone and Ford Torino in the 1968 NASCAR season, Ford dived head-on into aerodynamics development.

The Blue Oval came strong in 1969 with the Ford Torino Talladega, which debuted on the 1st of February at the Motor Trend 500, with none other than Richard Petty at the wheel, winning the race. Named after the Talladega Superspeedway in Alabama, which opened the same year, this car is widely accepted as the first true aero warrior.

The Talladega started as a regular production 1969 Ford Torino, which itself was a glorified intermediate Fairlane. Ford got the fastback design just right in 1968. The gracious sloping roof allowed smooth disengagement of the airflow, reducing drag and lift at the rear end. But the front end still held the car back. In order to dominate at NASCAR, Ford needed more aero.

Ford teamed up with NASCAR team Holman-Moody to create the 750 cars. NASCAR regulations required a minimum of 500 cars to be built and offered to the public in order to homologate a new model for racing.

Holman-Moody got to work and designed a new 6-inch front end extension. A panel was added in front of the original hood and introduced a 30-degree slope to keep airflow on top of the body. The fenders were cut and extended to match the new tapered nose.

The grill was brought forward and mounted flush with the fenders. A rubber seal filled in the voids to reduce drag and turbulence.

The new front bumper was actually a rear bumper which was cut and bent into a V-shape to redirect airflow and reduce the size of the stagnation point. The tops of the bumper were trimmed and the whole thing was mounted tight to the fenders. The lip that remained acted as a makeshift air dam, providing downforce at top speed.

New shallower rocker panels were produced, which sat 1 inch higher. Since NASCAR’s technical inspection measured the height of the vehicle from the bottom of the rocker panels, the new panels meant the Talladega could drop down an inch and still abide by the rules.

Slammed down, the Talladega offered an improved center of gravity and better stability in the corners. Ground effect was not yet discovered, but everybody knew lower was faster.

And boy, was this a faster car.

Early in the season, the Torino Talladega was powered by the old faithful FE 427 side oiler V8 engine. The new 620-horsepower, Boss 429 V8 engine was already developed, however, Ford couldn’t properly homologate it until late March.

In an interesting move, the company homologated the engine separately from the car, putting it in a Ford Mustang, since that was the hottest selling performance car Ford had. The Boss 429 Mustang was poorly received since it was expensive and was losing the traffic light races to cheaper Mustangs with the 427 or a 428 V8 engine.

It’s not that the engine wasn’t good. It was brilliant, however, you needed to whine it up to 6,000 RPM and keep it there for maximum power. It was designed for NASCAR and there had no rivals.

The Boss 429 equipped Ford Torino Talladega was the fastest car on the oval tracks. LeeRoy Yarbrough recorded the fastest pole at 190.706 mph and averaged 160.875 mph at the 1969 Daytona 500. Dodge driver Charlie Glotzbach was right on his rear bumper but wasn’t fast enough.

The 1969 Ford Torino Talladega dominated the NASCAR Grand National championship, winning 26 out of 54 races. David Pearson became champion again with Richard Petty taking second place – both driving the Talladega.

Naturally, Ford won the Manufacturers Cup in 1969.

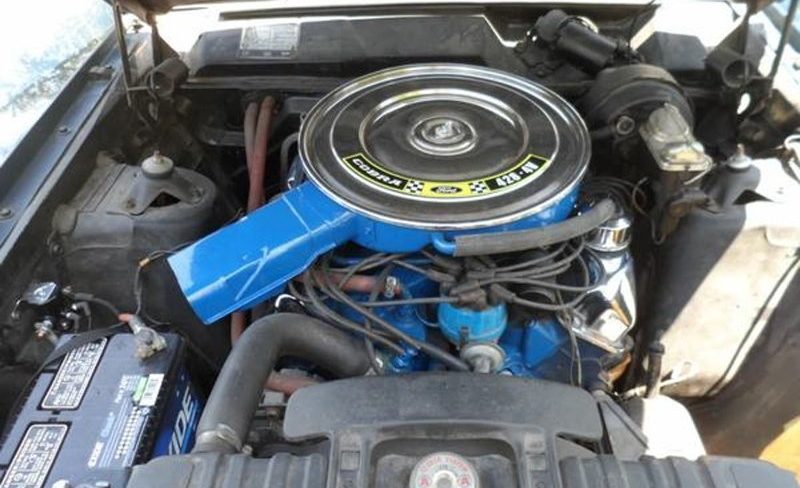

The production street Talladegas were only available with the 428 Cobra Jet V8. The engine produced 335 horsepower 5,200 rpm and 440 lb-ft of torque at 3,400 RPM. With plenty of low-end torque, this was Ford’s premier big-block V8 for street driving (and racing).

An engine oil cooler and power steering oil cooler were added to improve reliability at high RPM, full tilt racing. Those trickled down into the street Talladegas, as well. A C6 heavy-duty automatic transmission was standard. Staggered shocks and a 9-inch open differential with 3.25:1 rear gear ratio completed the rear end.

The “drag pack” option swapped the automatic gearbox for a 4-speed manual and added a limited-slip differential.

Unlike the wild, flashy muscle cars, the 1969 Ford Torino Talladega had more modest styling. No crazy vibrant colors, no stripes, no hood scoops, or fake vents (like certain Mustangs we know of).

Three colors were available – Wimbledon White, Presidential Blue, and Royal Maroon. Every Talladega received a Competition Black hood and rear end panel – the last of which was decorated with a circular “T” badge. A smaller rectangular badge with the same “T” and the Ford Blue Oval logo was added above the door handle.

Inside, the Torino Talladega offered a black vinyl cloth interior with a remarkably non-sporty bench seat.

Ford kept it simple with the styling and features, as the model’s purpose was only to homologate the car for the 1969 NASCAR season. The company lost money on every unit they sold since each was hand-built and required massive effort to produce. No 1970 models were produced – it was a one year only special.

Multiple factors stacked up at the end of 1969 which ultimately led to Ford’s withdrawal from racing. Privateer teams won another 6 races in the 1970 season, running the same 1969 Talladegas with no factory support.

Today, the 1969 Ford Torino Talladega is one of the rarest special edition muscle cars. It’s lived its entire life under the shadow of Chrysler’s outrageous aero offerings. But even though it never received the recognition it deserves, the Talladega may well be the most successful aero warrior of the bunch.

Your chances are slim about finding one below $40,000. Depending on the condition, it could fetch you a 6-figure sum at an auction. Out of the 738 units produced for sale, very few remain in existence and the ones whose whereabouts are known are in various states of repair (or disrepair depending on how you look at it).

You can visit the Talladega/Spoiler Registry for more information about the 1969 Ford Torino Talladega.
